Horizon AFC-746S / AFC-746D
Horizon AFC-746S / AFC-746D
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
The Horizon AFC-746S and AFC-746D are high-speed computerized cross folders designed for precision, automation, and productivity. These B1-format folders offer rapid changeover, high-speed production, and superior fold quality, making them ideal for high-volume print finishing.
Key Features
🔹 Advanced automation – Input sheet size and select the fold pattern on the 10.4” color touchscreen for fast setup

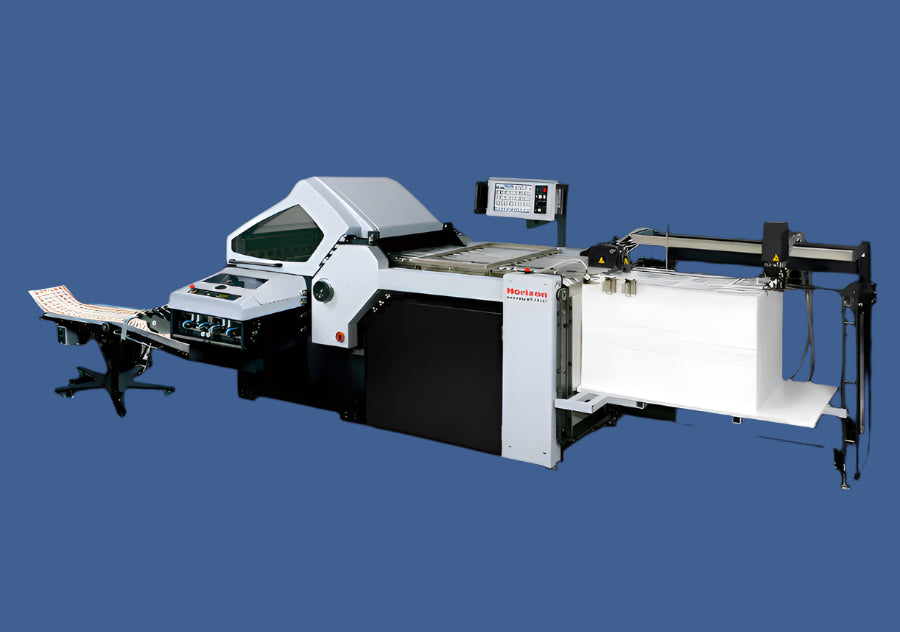

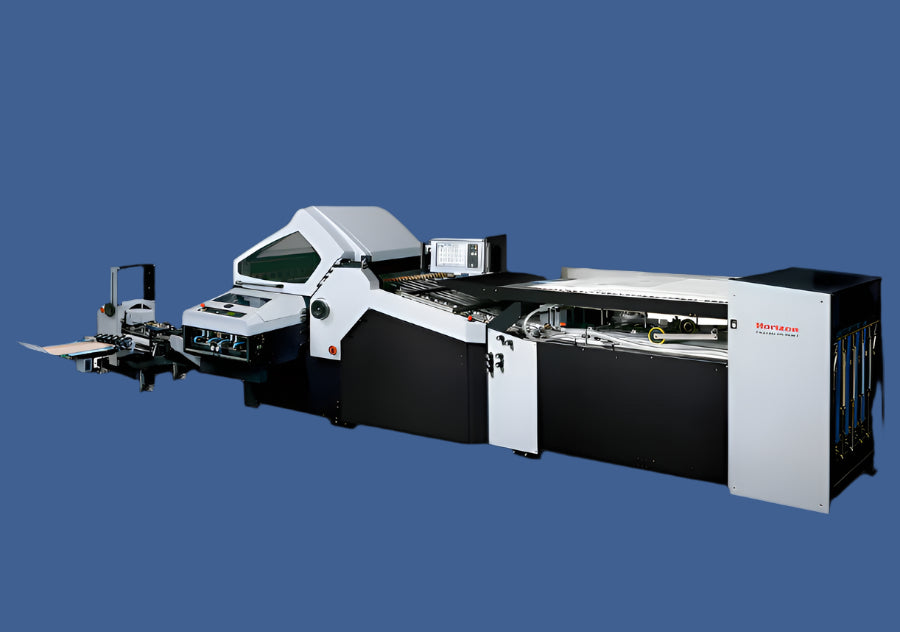

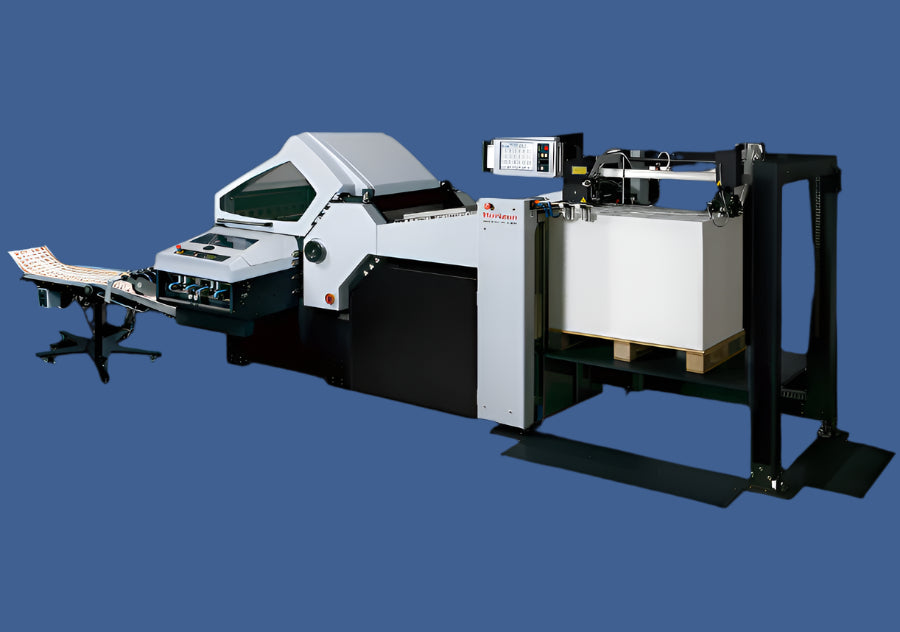

🔹 Multiple feeding options – Available with flat pile, pallet pile, or round pile feeders to suit different workflows
🔹 High-precision folding – Steel and polyurethane fold rollers provide consistent, sharp folds
🔹 Intelligent sheet handling – Adjustable suction head and anti-static side lay guide ensure stable transportation and registration
🔹 iCE LiNK integration – Seamless connection with Horizon's cloud-based workflow management system
🔹 Automated adjustments – Roller gaps and buckle settings adjust automatically based on sheet size and fold pattern
Technical Specifications
| Specification | Details |
|---|---|
| Machine structure | 6KTTL (6 buckles + 1st fold knife + 2 buckles below knife + 2nd fold knife) |
| Max sheet size (flat pile / pallet pile feeder) | 29.05” x 43.3” (738 x 1,100 mm) |
| Max sheet size (round pile feeder) | 29.05” x 51.18” (738 x 1,300 mm) |
| Min sheet size (flat pile feeder) | 8.27” x 8.27” (210 x 210 mm) |
| Min sheet size (pallet pile feeder) | 8.27” x 11.7” (210 x 297 mm) |
| Min sheet size (round pile feeder) | 8.27” x 5.83” (210 x 148 mm) |
| Sheet weight range | 35 to 220 gsm |
| Belt speed | 99 - 754 ft/min (30 - 230 m/min) |
| Knife fold speed | 590 ft/min (180 m/min) |
| Power requirements | 3-phase 200 / 220 / 400V, 50/60Hz |
| Machine dimensions (flat pile feeder) | 159.9” x 73.7” x 66.6” (4,060 x 1,870 x 1,690 mm) |
| Machine dimensions (pallet pile feeder) | 172.5” x 73.7” x 66.6” (4,380 x 1,870 x 1,690 mm) |
Ideal Applications
📄 Print shops – Efficient high-speed folding for brochures, booklets, and direct mail
📦 Manufacturers – Precision folding for packaging inserts and manuals
🏢 Corporate offices – Streamlined folding for mass mailing and document processing
Software Features
✔ Automated job memory – Store and recall preset fold configurations
✔ Touchscreen interface – Graphical navigation for quick setup and job switching
✔ Horizon iCE LiNK – Cloud-based integration for automated workflow management
The Horizon AFC-746S / AFC-746D is a high-speed folding solution built for automation, precision, and efficiency. Designed for demanding production environments, it delivers exceptional folding quality with minimal operator intervention.
