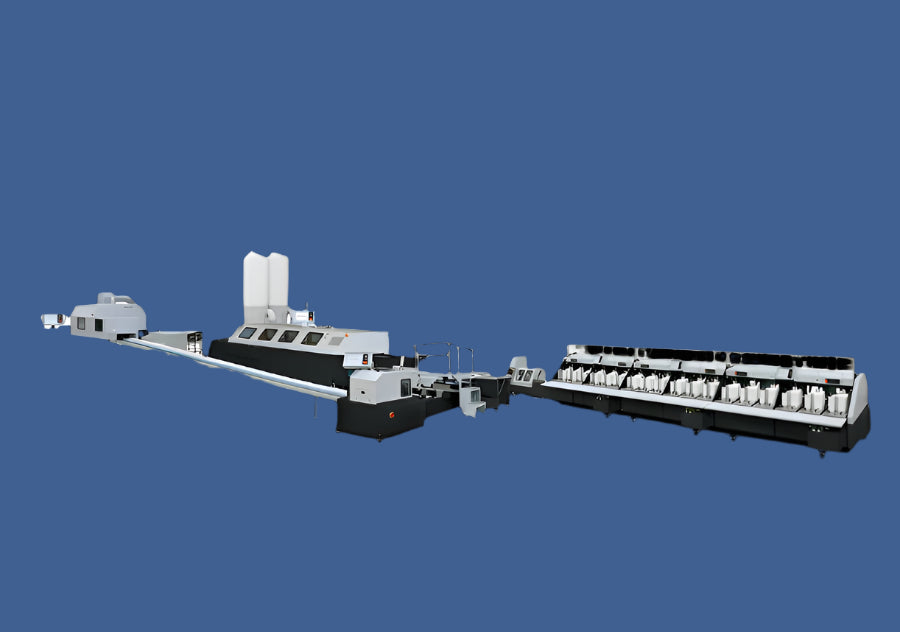

Horizon CABS 4000V Perfect Binding System
Efficiency, automation, ease of use, productivity, and quality control are all key features of the CABS4000V binding system. It can handle short, medium, and longer run lengths while producing 4,000 books per hour. The color touch screens make operation simple and accurate, allowing for quick adjustments and versatile production. This system is equipped with a tank unit that can bind using both EVA and PUR hotmelt, and can handle book sizes ranging from A6 to A4 in-line. For even more flexibility, the ST-600 stacker allows for off-line signature gathering and the RU-600 misfeed unit enables non-stop operation. Optional quality control features, such as image checking cameras, thickness detectors, and weight checkers, ensure absolute quality. And for a fully automated workflow, the system can be integrated with iCE LiNK, using cloud technology and Horizon's post-press management system.
Features
- MG-60H - 6 Hopper Gatherer

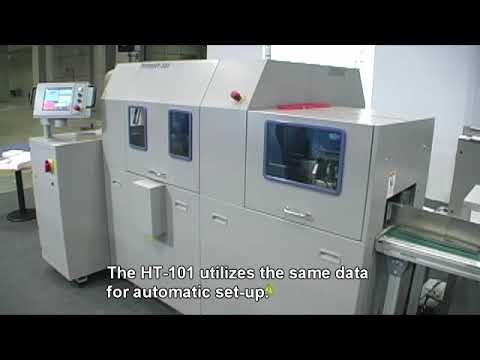

- HT-101 - Three-Knife Trimmer
- SB-09 9-Clamp Binder
- MG-60H
- SB-09
- HT-101
- Hand Feed Section
- Image Checking System
- Clamp Adjusting Lever

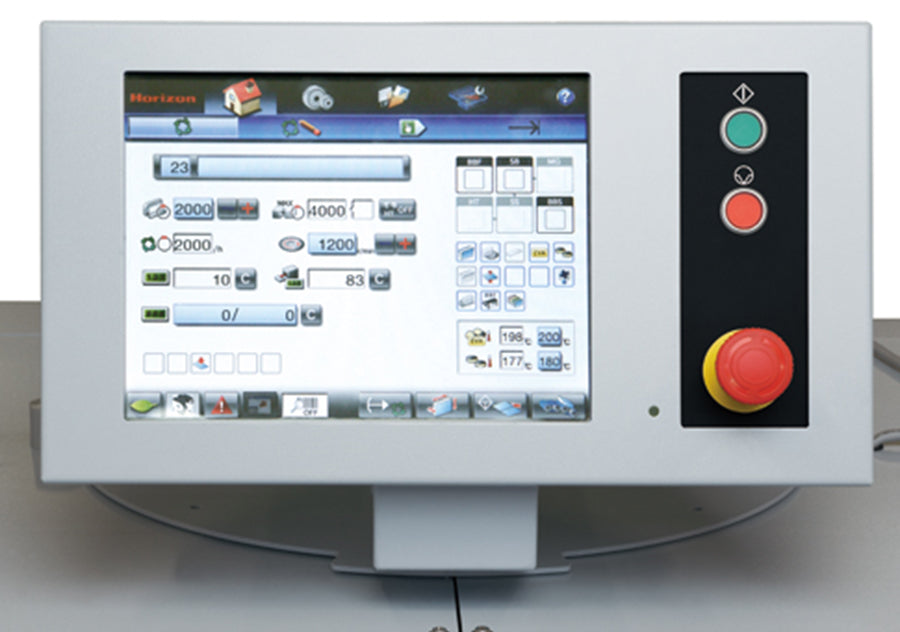

- Operator Console
- Delivery Section
- In-Feed Section
- Opening Adjusting Knob
- Milling
- Gluing

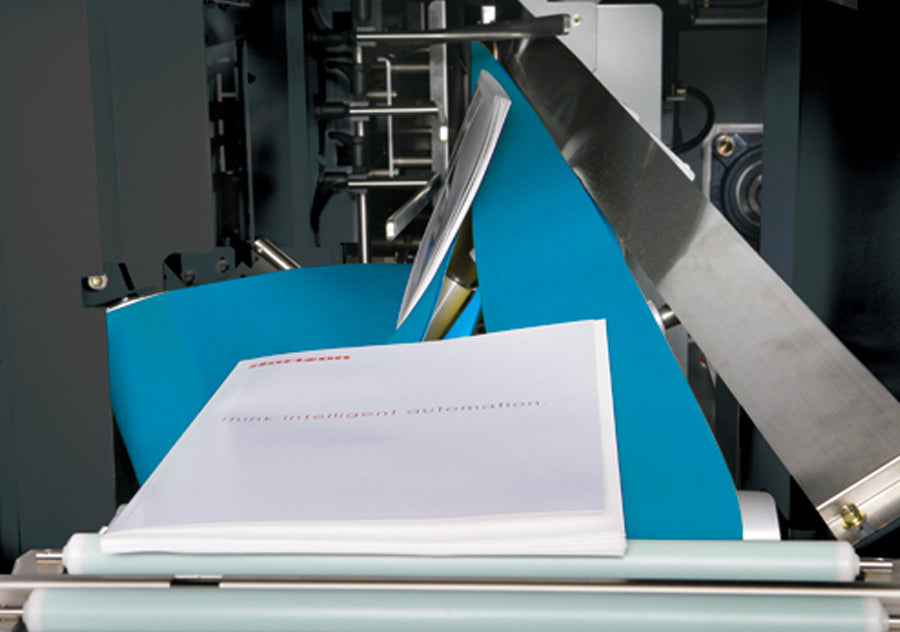

- Cover and Book Registration
- Cover Feeder
- Scorer Section
- Pre-Melt Tank
Horizon CABS 4000 Specifications
| SB-09 Major Specifications | ||||
| Number of Clamps | 9 | |||
| Book Size | Portrait | 1 | 2 | |
| Max. | 330 mm (12.99") | 250 mm (9.84") | In-Line | |
| Min. | 148 mm (5.83") | 105 mm (4.14") | In-Line | |
| Type | A6 to A4 | When MG-60H is connected | ||
| Landscape | 1 | 2 | ||
| Max. | 330 mm (12.99") | 320 mm (12.59") | Off-Line | |
| Min. | 135 mm (5.32") | 185 mm (7.29") | ||
| Type | B6 to A4 | When MG-60H is connected | ||
| Book Thickness | 1 to 45 mm (0.04" to 1.77") | |||
| Cover Size (Top-Bottom x Fore-Edge) | Max. 400 x 660 mm (15.74" x 25.98") | |||
| Min. 135 x 220 mm (5.32" x 8.67") | ||||
| Cover Weight Range | 82 to 302 gsm Normal Paper, 105 to 348 gsm Coated Paper | |||
| Cover Pile Height | Max. 130 mm (5.1") | |||
| Warm Up Time | 70 min. | |||
| Tank Temperature | 160 to 200 C | |||
| Milling Blade Maximum Depth | 4 mm (0.15") (Depends on the sheet weight) | |||
| Production Speed | Max. 4,000 Books/Hr. | |||
| Voltage / Frequency | 3-Phase 200-230 V, 50 / 60 Hz | |||
| 3-Phase 380-415 V, 50 Hz | ||||
| Rated Current | 3-Phase 200 V, 50 Hz, 23 A / 60 Hz, 25 A | |||
| 3-Phase 220 V, 60 Hz, 23 A | 3-Phase 400 V, 50 Hz, 12 A | |||
| Power Consumption | 3-Phase 200 V, 50 Hz, 7.6 kW / 60 Hz, 8.5 kW | |||
| 3-Phase 220 V, 60 Hz, 8.5 kW | 3-Phase 400 V, 50 Hz, 7.6 kW | |||
| Heat Output | 18,310 kJ (4,380 kcal) | |||
| Motors | 3.7 kW x 1 / 2.2 kW x 2 / 1.5 kW x 2 / 40 W x 1 / 25 W x 1 | |||
| Heaters | 3.0 kW x 1 / 0.75 kW x 1 / 80 W x 1 / 45 W x 1 | |||
| Machine Dimensions | Stand Alone (with U-09, AC-08) : | |||
| 4,520(W) x 2,425(D) x 1,660(H) mm (178.0" x 95.5" x 65.4") | ||||
| System (with S-09) : | ||||
| 4,900(W) x 1,570(D) x 1,660(H) mm (193.0" x 61.9" x 65.4") | ||||
| Machine Weight | Stand Alone (with U-09) : 2,780 kg (6,130 lbs.) (without Delivery) | |||
| System (with S-09) : 2,860 kg (6,306 lbs.) (without Delivery) | ||||
| MG-60H Major Specifications | |||||
| Module Configuration | MG-60Ha / MG-60Hb / MG-60Hb / MG-60Hc / MG-60Hb / MG-60Hb | ||||
| Number of Hoppers | 6 hoppers / 12 hoppers / 18 hoppers / 24 hoppers / 30 hoppers / 36 hoppers | ||||
| Sheet Size | Feed Direction | 1 | 2 | A5 to A4 (Optional attachment is capable of A6 size.) |
|
| Max. | 330 mm (12.99") | 250 mm (9.84") | |||
| Min. | 182 mm (7.17") | 128 mm (5.04") | |||
| Sheet Weight Range | Normal Signature Sheet | ||||
| 4-Page to 32-Page Signatures | |||||
| Sheet Feeding System | Air suction bottom feed | ||||
| Bin Pile Height | Normal Paper Signature : Max. 300 mm (11.81") | ||||
| Coated Paper Signature : Max. 150 mm (5.90") | |||||
| Max. Transport Thickness | Max. 50 mm (1.96") | ||||
| Production Speed | Max. 4,000 sets/hr. (When SB-09 is interlocked) | ||||
| Error Detector / Indicator | Misfeeds, Double Feeds, Jams (Linear Detection System) | ||||
| Other Function | Synchronized collation starting by hand feed | ||||
| Voltage / Frequency | 3-Phase AC 200 V, 50 / 60 Hz | ||||
| 3-Phase AC 220 V, 60 Hz | |||||
| 3-Phase AC 400 V, 50 Hz | |||||
| Rated Current | MG-60Ha : AC 200 V, 50 Hz, 8.5 A / AC 200V, 60 Hz, 8.8 A | ||||
| MG-60Hc : AC 200 V, 50 Hz, 30.3 A / AC 200 V, 60 Hz, 35.7 A | |||||
| Motors | MG-60Ha : 1.5 kW x 2 / MG-60Hb : 1.5 kW x 1 | ||||
| Heat Output | MG-60Ha : 3,460 kJ (830 kcal) / MG-60Hb : 2,110 kJ (500 kcal) | ||||
| HT-101 Major Specifications | |||
| Untrimmed Book Size | 1 | 2 | |
| Max. | 410 mm (16.14") | 320 mm (12.59") | |
| Min. | 148 mm (5.83") | 105 mm (4.14") | |
| Trimmed Book Size | Max. | 366 mm (14.40") | 300 mm (11.81") |
| Min. | 145 mm (5.71") | 103 mm (4.06") | |
| Trimming Width | Fore-edge : 45 mm (1.77") (Maximum trim width for fore-edge is 23 mm / 0.90" when the finishing size is A4E.) |
||
| Top-Bottom : 30 mm (1.18") | |||
| Standard Size Trimmed by Standard Accessory | A4 / A5 (+/- 3 mm) | ||
| Clamp Pressure | Operated by Servo Motor | ||
| 5 kN to 18 kN (Adjustable in 14 steps) | |||
| Production Speed | 400 to 1,600 cycles/hr. (Adjustable in 7 steps) | ||
| Table Height | 911 mm (35.9") | ||
| Voltage / Frequency | 3-Phase 200-230 V, 50 / 60 Hz | ||
| 3-Phase 380-415 V, 50 Hz | |||
| Rated Current | 3-Phase 200 V, 50 / 60 Hz, 13.4 A | ||
| Heat Output | 11,160 kJ (2,670 kcal) | ||
| Motors | 3.7 kW x 1 / 2.2 kW x 1 / 2.0 kW x 1 / 0.75 kW x 2 / 40 W x 3 | ||
| Machine Dimensions | Main Body : 1,950(W) x 1,900(D) x 1,950(H) mm (76.8" x 74.9" x 76.8") | ||
| Power Box : 508(W) x 1,000(D) x 1,505(H) mm (20.0" x 39.4" x 59.3") | |||
| Machine Weight | Main Body : 2,650 kg (5,843 lbs.) | ||
| Transformer : 43 kg (95 lbs.) | |||
