Access a layout diagram for this system here.

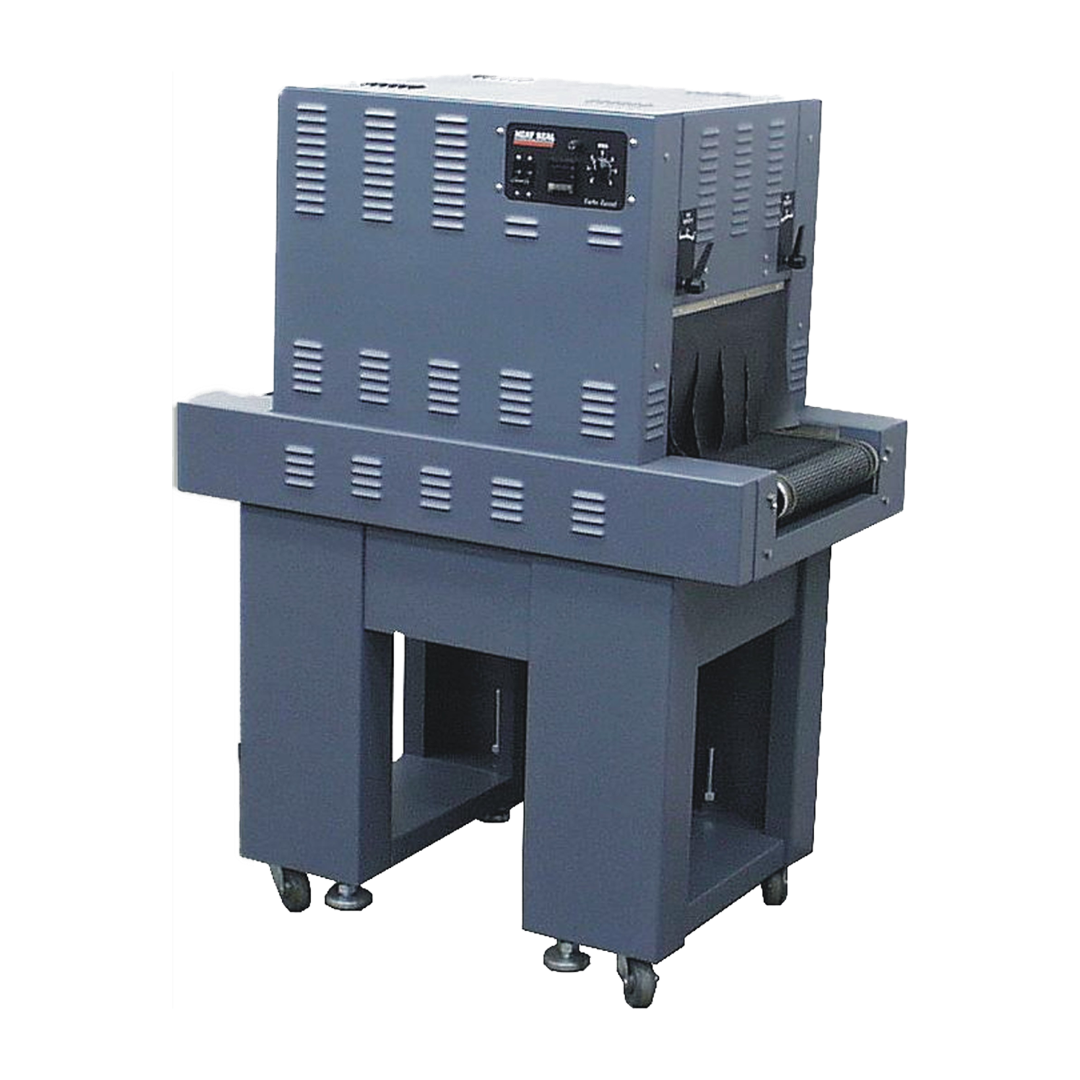

The Heat Seal T2615 is a compact, high-performance shrink tunnel engineered for reliability and consistent results in lower-volume or space-constrained packaging environments. With a single-zone heat chamber, digital temperature control, and adjustable conveyor speed, the T2615 delivers uniform shrink quality across a wide variety of products.
Key Features
🔷 26” long tunnel with 15” width and 8” height
🔷 High-velocity air flow with mechanical dual controls
🔷 Digital tunnel temperature control and safety shutoff
🔷 Conveyor speed adjustable up to 70 feet per minute
🔷 Live/dead roller conveyor with 2” spacing standard
🔷 Heavy-gauge console with leveling feet and casters
🔷 Automatic cool-down cycle protects heating element
🔷 Optional stainless steel construction and mesh belts
Specifications
Specification | Details |
---|---|
Tunnel Chamber Dimensions | 26" L x 15" W x 8" H |
Conveyor Type | Live/Dead silicone-covered rollers |
Roller Spacing | 2" standard (1" optional) |
Conveyor Speed | 0–30 ft/min standard, up to 70 ft/min (LDR) |
Power Requirements | 208–240V, 25A, Single Phase |
Wattage | 4,000 Watts |
Overall Dimensions | 41" L x 24" W x 52" H |
Machine Weight | 420 lbs (191 kg) |
Applications
📦 Shrink packaging for boxed products, consumer goods, and multipacks
🧴 Cosmetics, food trays, and promotional items
📄 Printed sets and light bundles requiring consistent sealing
Benefits
✅ Compact footprint perfect for tight production areas
✅ Digital temperature control for repeatable results
✅ Durable roller conveyor with optional mesh belt overlays
✅ Optional stainless steel upgrade for food or cleanroom use
✅ Safe, reliable, and energy-efficient operation
