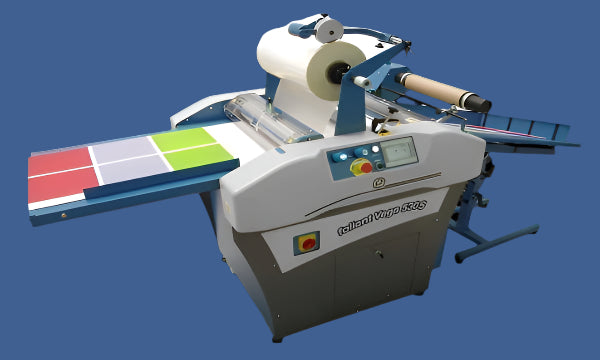

Foliant Vega 530S

Semi-Automatic Laminating System

The Foliant Vega 530S is a compact, heavy-duty semi-automatic single-sided laminator built for in-house lamination of digital and offset output. It features manual feeding, automatic sheet separation via bump rollers, an adjustable twin de-curl bar, and integrated pneumatic pressure—making it ideal for short-run and high-volume jobs alike. With a max sheet size of 20.8” x 29.5” and speeds up to 59 ft/min, the Vega 530S is a professional solution with a small footprint.

Key Features

🔷 Manual Feed with Automatic Separation – Simple loading with automated bump roller delivery.
🔷 Twin De-Curl Bar System – In-run adjustable for offset and digitally printed sheets.
🔷 Built-In Pneumatic Pressure System – Integrated compressor eliminates the need for external air.
🔷 Chrome & Rubber Rollers – Laminates between polished chrome and hard rubber with precise heat and pressure.
🔷 Fast Warm-Up Time – Ready for production in under 10 minutes.
🔷 Quick Film Change Shaft – Supports up to 9,842' of film (24–42μm) with built-in slitter and perforator.
🔷 Icon-Based Touchscreen – Streamlined control for temperature, speed, and separation timing.
🔷 Compact Design – Built for space-conscious print rooms without sacrificing performance.

Specifications

Applications

📚 Short-Run Book Covers – Clean, durable finish for offset or digital covers.
📄 Marketing Materials – Laminate brochures, inserts, flyers, and menus.
🛍 Retail & Packaging Inserts – Finish product cards, folded tags, and POP signage.
🖨 General Print Protection – Protects documents, mailers, or ID cards from wear.

Available Options

📍 Jogger 530 – Vibrating stacker for automatic alignment and collection (3.9” pile).
📍 Reception Unit RU530 – Compact, adjustable desk for collecting finished sheets.

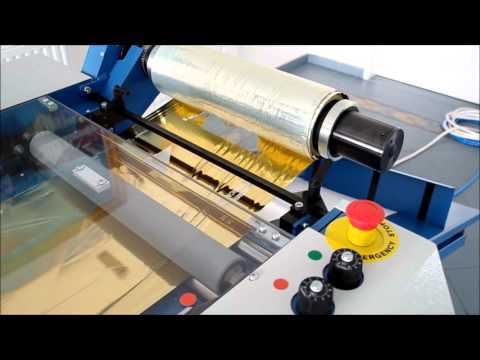

📍 Foliant Foiler – Add metallic or spot varnish effects (gold, silver, red, etc.).
📍 Non-Sticky Pressure Roller – Prevents adhesive buildup and enables lamination of windowed sheets.
📍 Air Shaft – Allows tool-less film loading (requires pneumatic separation).
📍 Extra Film Supply Roll Shaft – Speeds up film changeover.
📍 Pneumatic Separation Upgrade – Adds advanced control of separation timing and enables Nylon film compatibility.

⚠️ Machine must be operated with either a Jogger or Reception Unit.

Benefits

✅ Powerful yet compact—fits into tight spaces while delivering professional output.
✅ Integrated compressor simplifies setup and maintenance.
✅ Ideal for digital and offset prints, including thick or coated stocks.
✅ Supports short runs and long jobs alike with consistent performance.
✅ Expandable configuration—upgrade-ready for growing operations.
