MBM Aerocut X Pro
The Aerocut X Pro is an all in one, user friendly machine for slitting, creasing, cutting and perforating. It features a 10” color touch screen with air feed.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

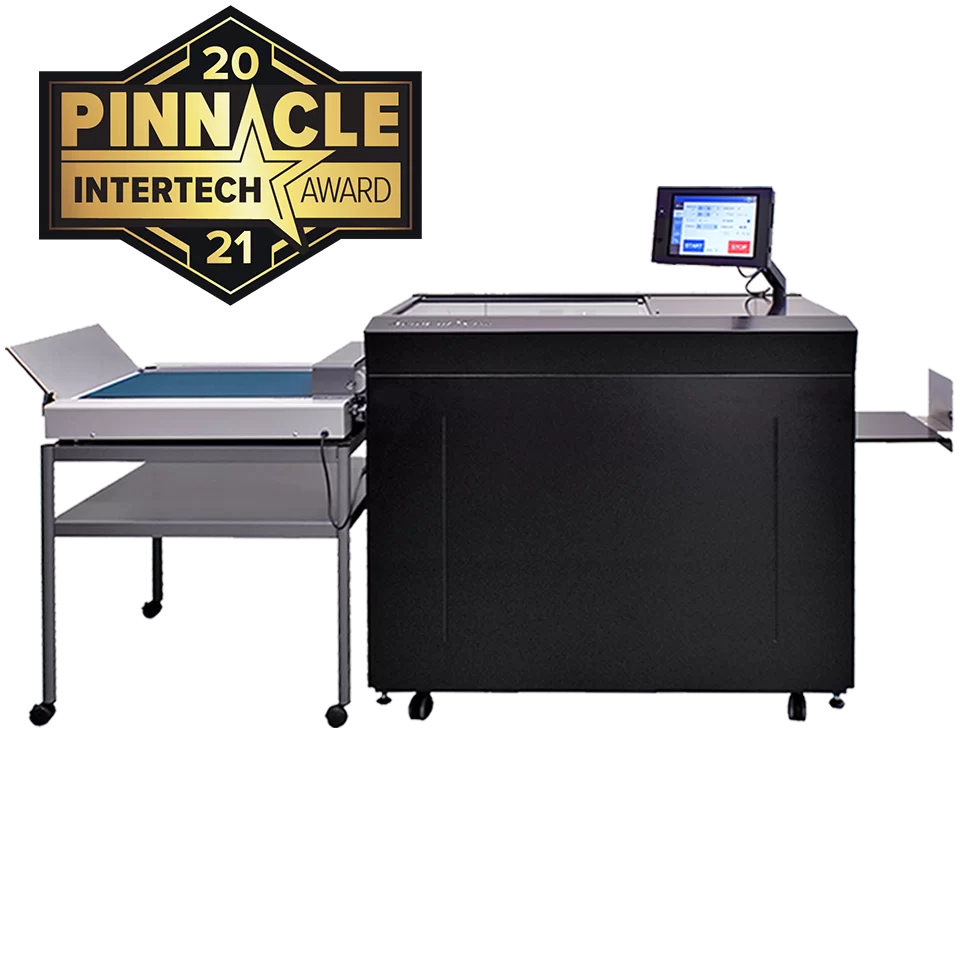

MBM AeroCut X Pro Digital Finisher
The MBM AeroCut X Pro is a professional-grade slitter, cutter, creaser, and perforator engineered for high-speed, high-precision digital print finishing. Featuring a large 10" color touchscreen, an advanced Tri-Suction feeding system, and barcode-driven job recognition, the X Pro delivers automated accuracy for complex, variable finishing workflows. Designed to handle stocks up to 400 gsm and sheet lengths up to 47.2", it is well suited for production print shops, in-plant operations, and high-volume digital environments.
Key Features

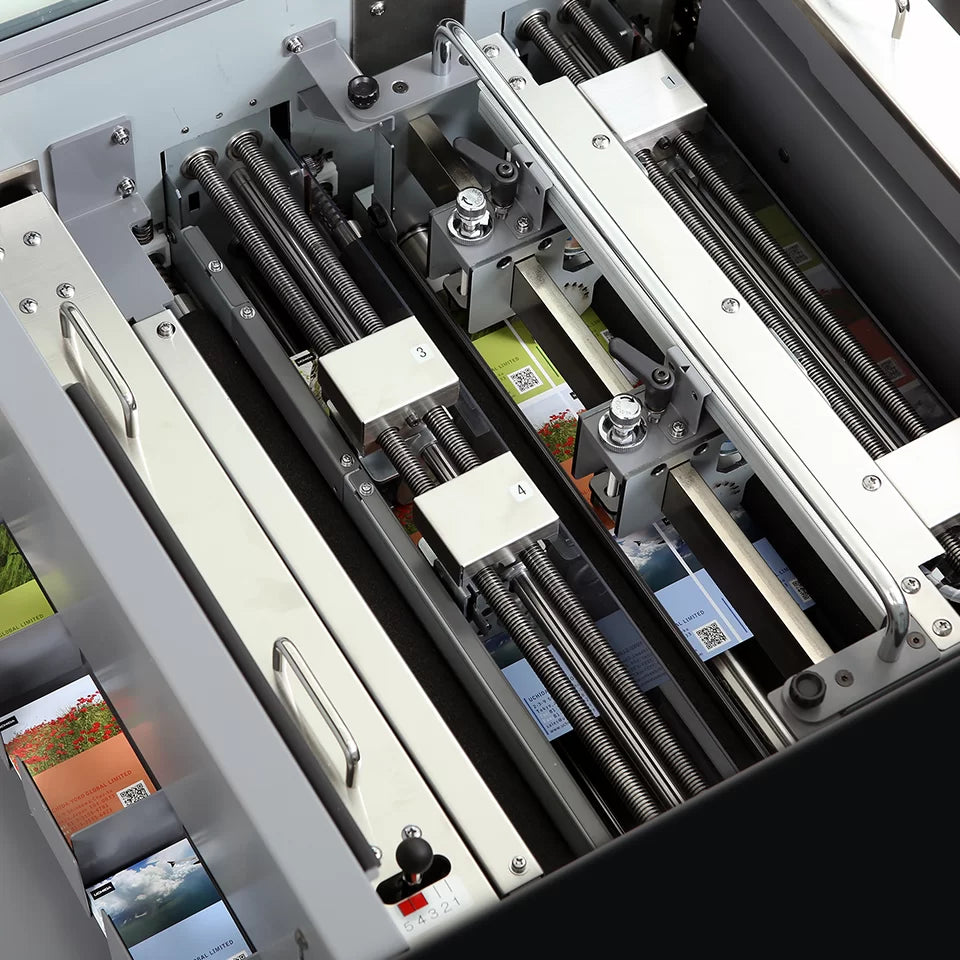

- Four-in-one finishing slits, cuts, creases, and perforates in a single pass

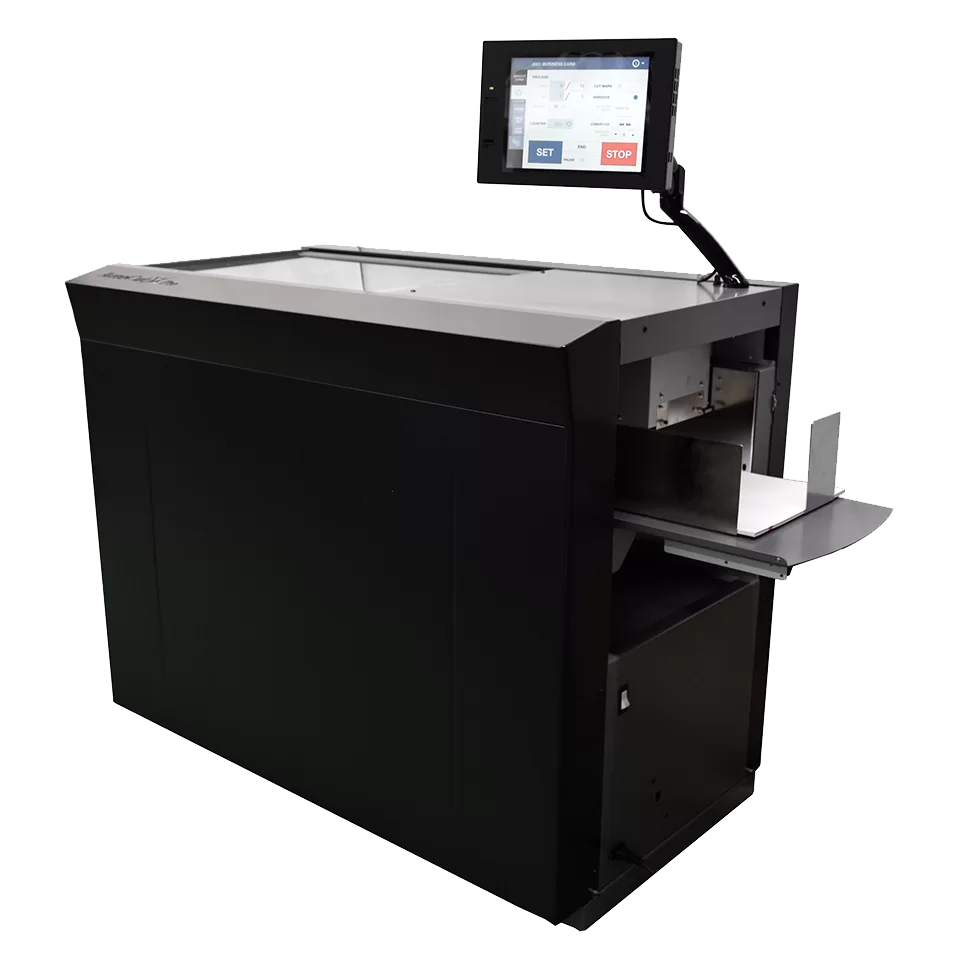

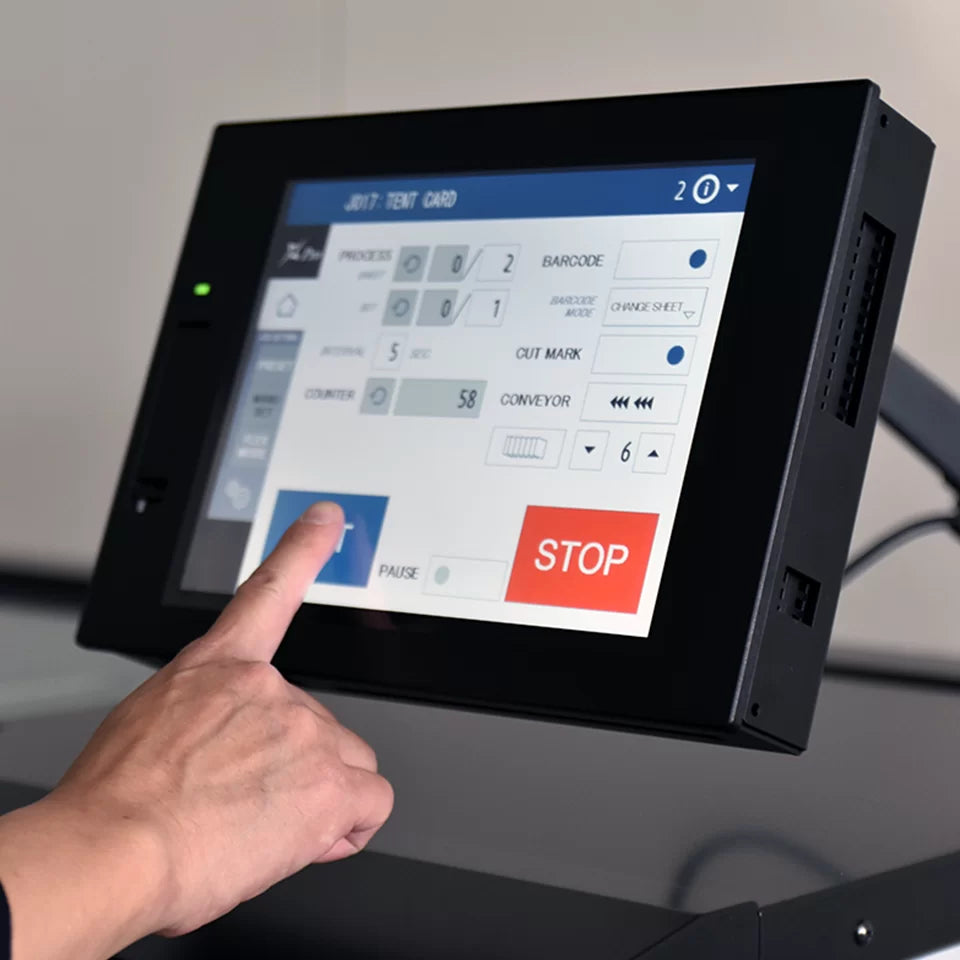

- 10" color touchscreen with adjustable arm for clear visibility and control
- Tri-Suction feeding system minimizes double feeds and paper jams
- Self-sharpening blades support heavy stocks up to 400 gsm

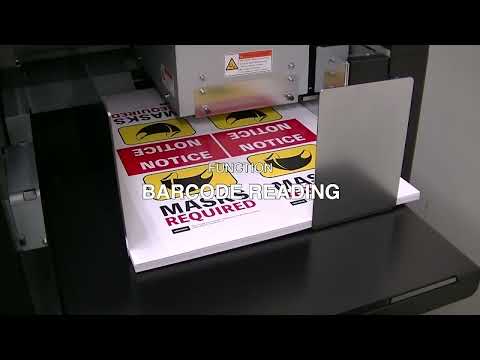

- Barcode reader integration automatically recalls and verifies job settings

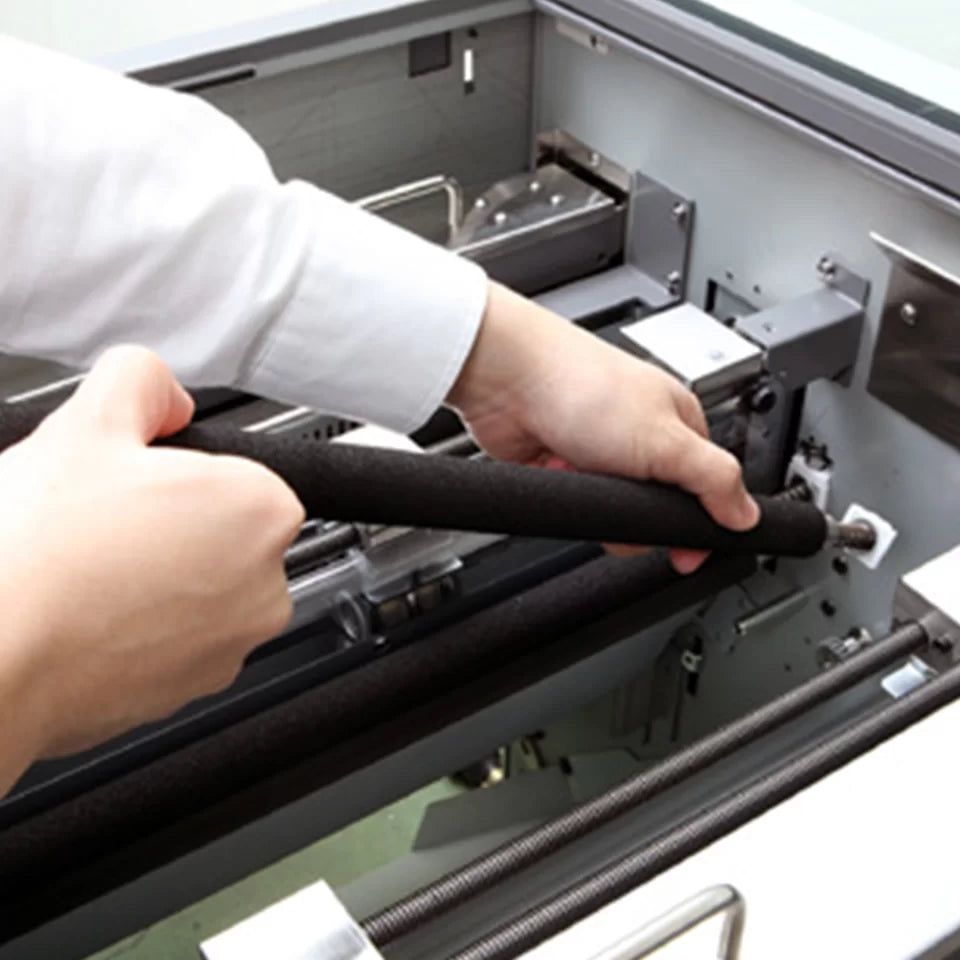

- Detachable rollers simplify access for maintenance and cleaning
- High-speed output up to 34 sheets per minute for production workflows
- Intellicut software license included for variable data and barcode-based imposition
- Remote PC controller enables LAN-based job control and adjustments
Why It Matters
The AeroCut X Pro is built to reduce setup time and operator intervention in high-mix, high-volume digital finishing. Barcode automation, touchscreen control, and intelligent feeding allow shops to move quickly between jobs while maintaining consistent accuracy across heavy stocks and long sheet lengths.
Specifications
| Specification | Detail |
|---|---|
| Speed | Up to 34 sheets/min* |

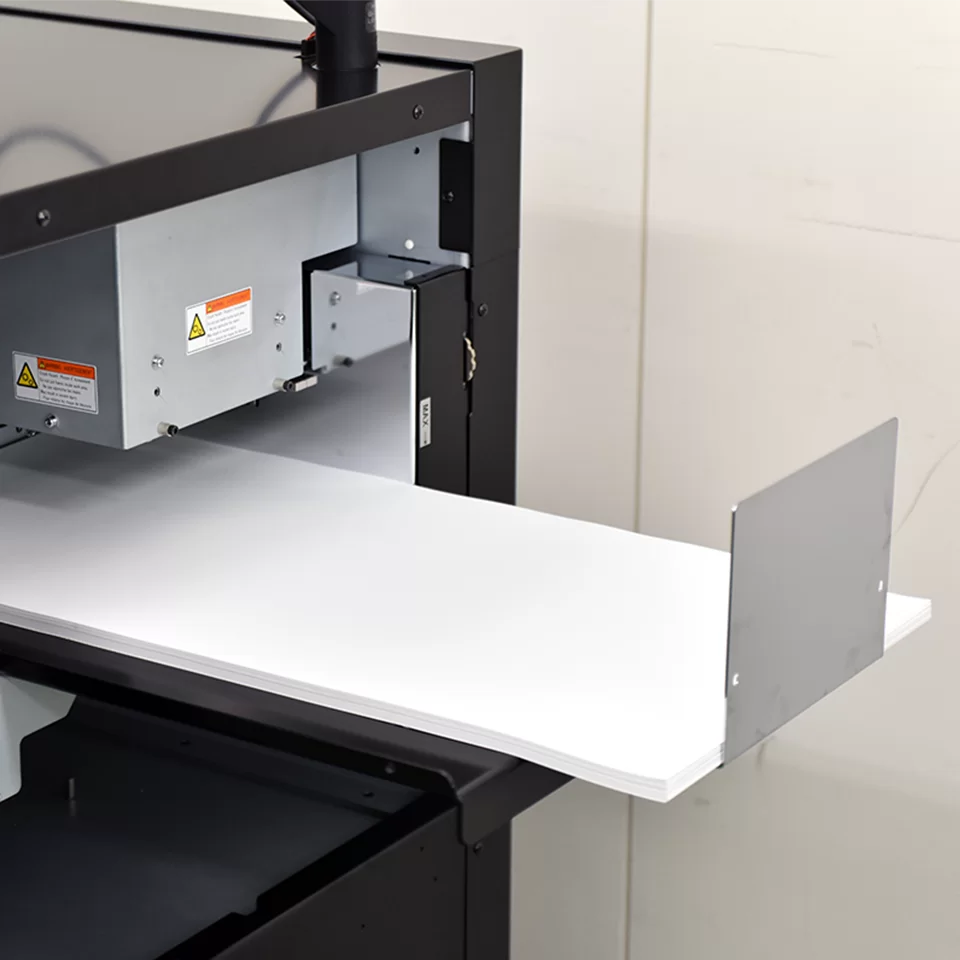

| Sheet Capacity | 4" feed stack |
| Paper Weight Range | 120–400 gsm |
| Paper Size Range | 8.27" × 8.27" to 14.5" × 47.2" (flex mode) |
| Electrical | 100–120V, 50/60 Hz |

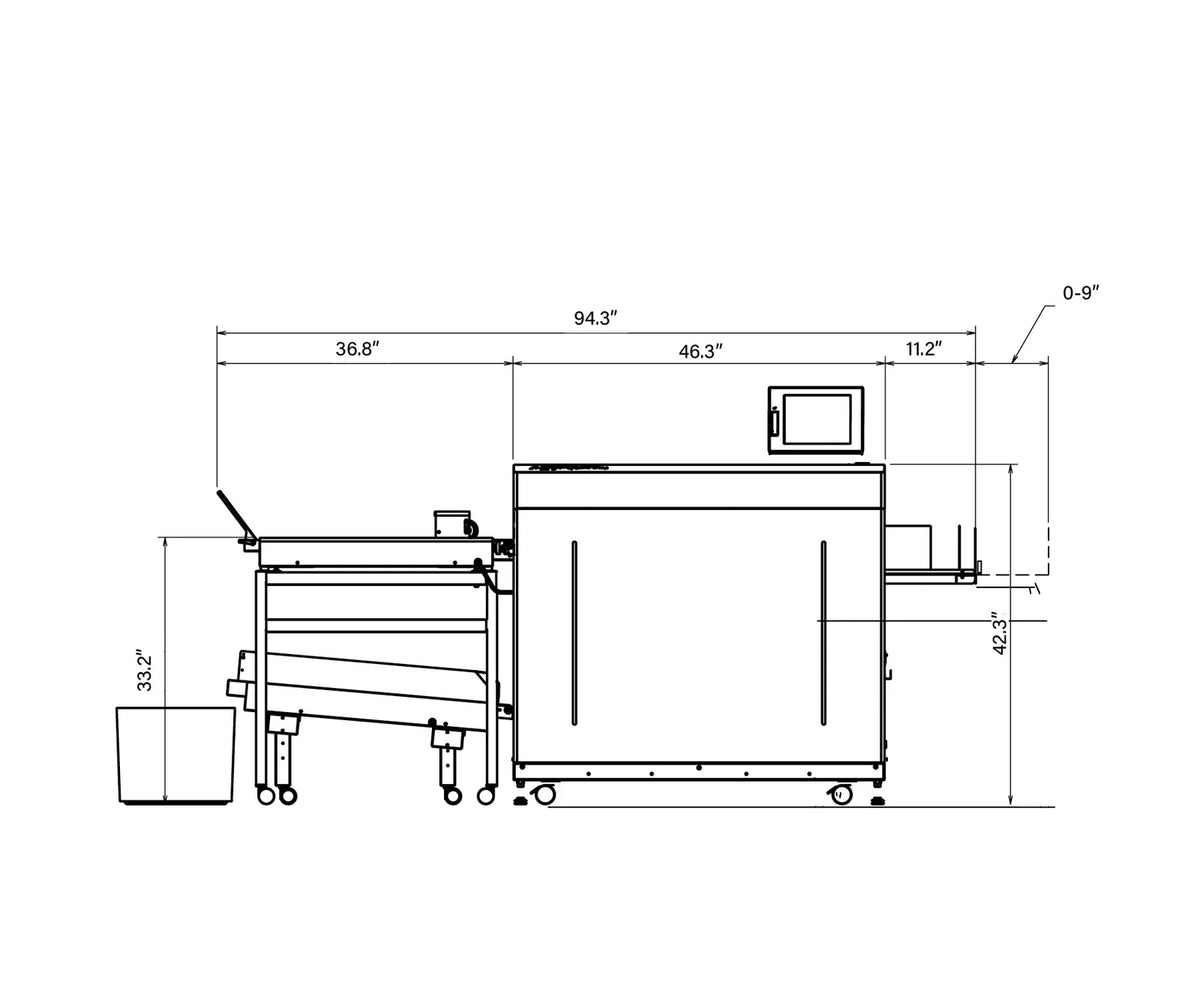

| Dimensions (D × W × H) | 28" × 46.3" × 42.3" |
| Weight | 639 lbs (290 kg) |
Applications
Available Options
- Intellicut software license for PDF imposition, barcode setup, and cut mark generation
- LAN-based remote control via Intellicut Controller for PC-to-machine operation
- Replacement blades and OEM consumables for ongoing performance
